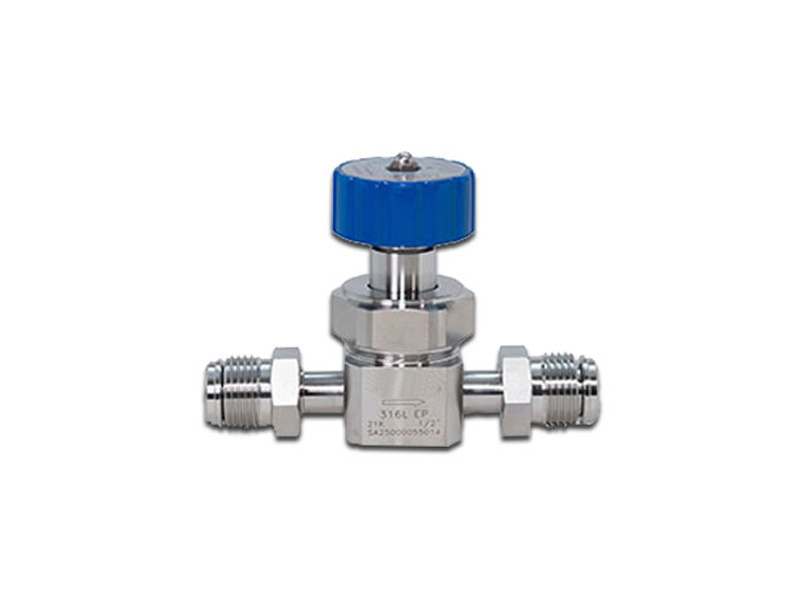

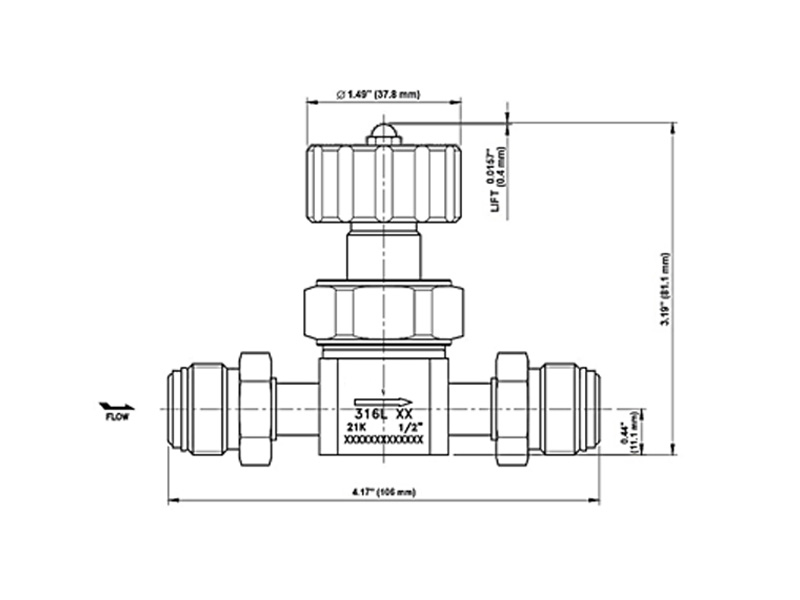

Manual Actuator DVF-S-8MFS-LPM
| Model | Seat Material | Actuator | Port Connection 1 | Port Connection 2 |
| DVF-S-8MFS-LPM | PCTFE | 1/4” turn actuator, Manual | 1/2" Male Face Seal | 1/2" Male Face Seal |
Diaphragm Valve Low Pressure Manual Model:
-Pressure Rating: Vacuum to 290 psig (20 bar)
-Temperature Rating: -9.4°F ~ 149°F (-23°C ~ 65°C)
-Flow Coefficient: 0.60
Body Material:
-SS316L & SS316L VAR Body
Diaphragm Material:
-Ni-Co Alloy
Handle:
-Aluminum (Blue)
-Handle shape provides visual identification of OPEN and CLOSED positions
