DV-S-ff-LPP-NC

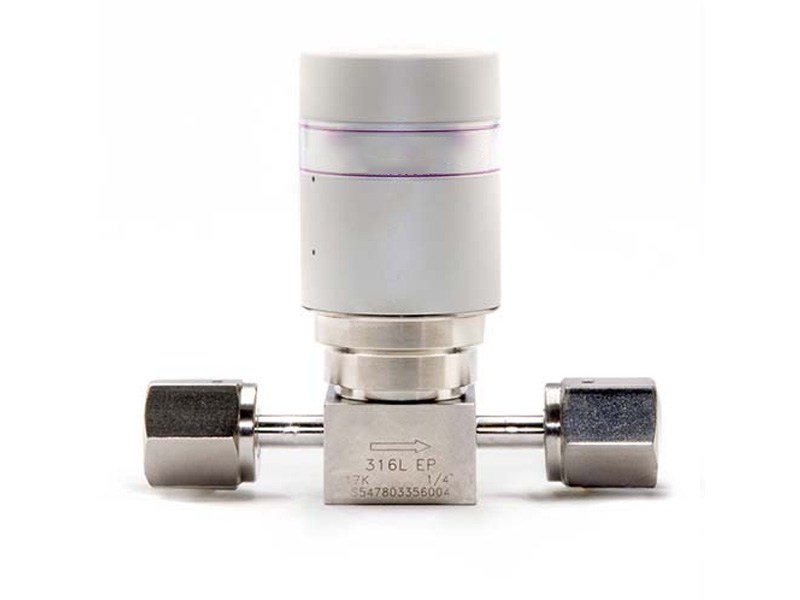

Pneumatic Actuator NC DV-S-ff-LPP-NC

Available in Stock

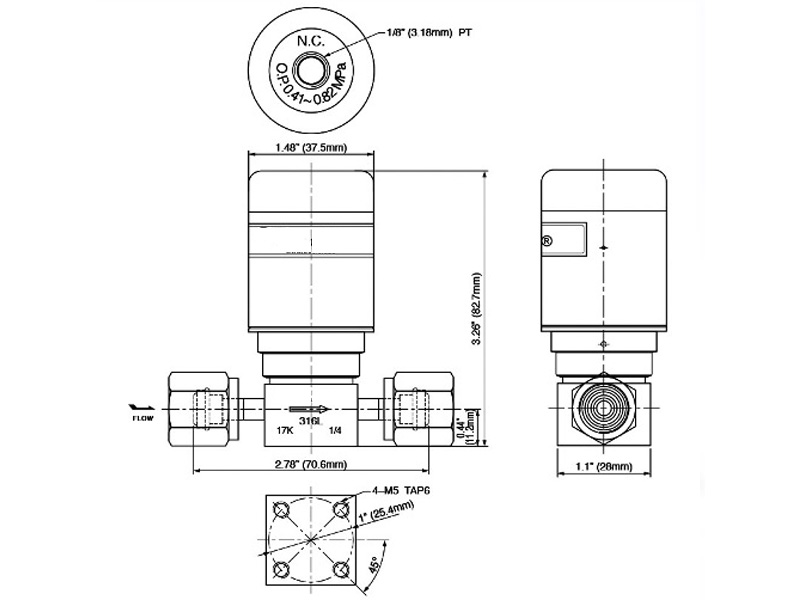

DV-S-ff-LPP-NC2.jpg_1

Truelok
Ordering Number
Material Actuator Port 1
End Connection
Port 2
End Connection
DV-S-ff-LPP-NC SS 316L Pneumatic Normally Closed 1/4" Female 1/4" Female


Low Pressure Model (Normally Closed):
- Pressure Rating: 250 psig (17.2 bar)
- Temperature Rating: -10 t0 160°F (-23 to 65°C)
- Flow Coefficient: 0.27

Body:
- SS316L & SS316L VAR Body Material for Ultrahigh Purity Applications
- Fully Swept Flow Path Minimizes Entrapment Areas and Maximizes Flow Capacity

Seat:
Fully contained PCTFE seat design provides
- Outstanding Resistance to Swelling and Contamination.
- Improved Helium Leak Test Performance
- Minimal Particle Generation
- Long Cycle Life

Diaphragm:
- Excellent in Strength and Corrision Resistance
- Optimal Design for Long Cycle Life
