Product

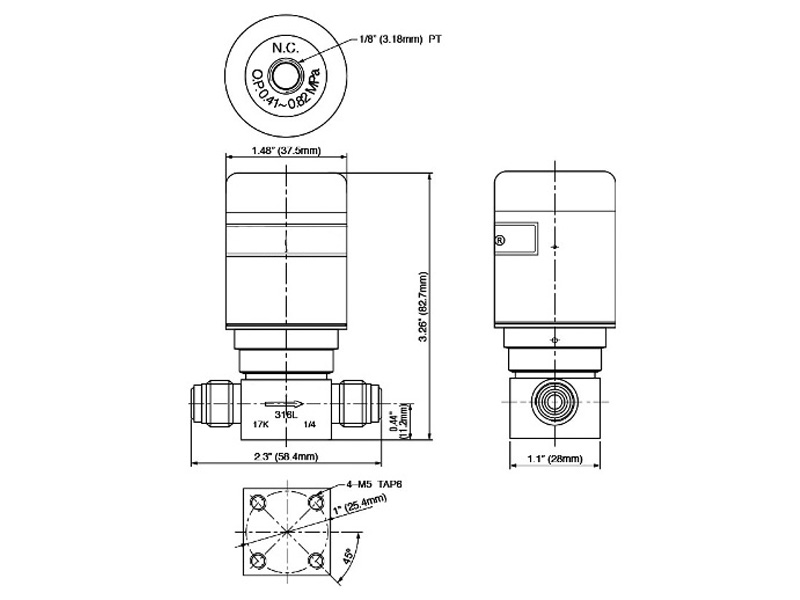

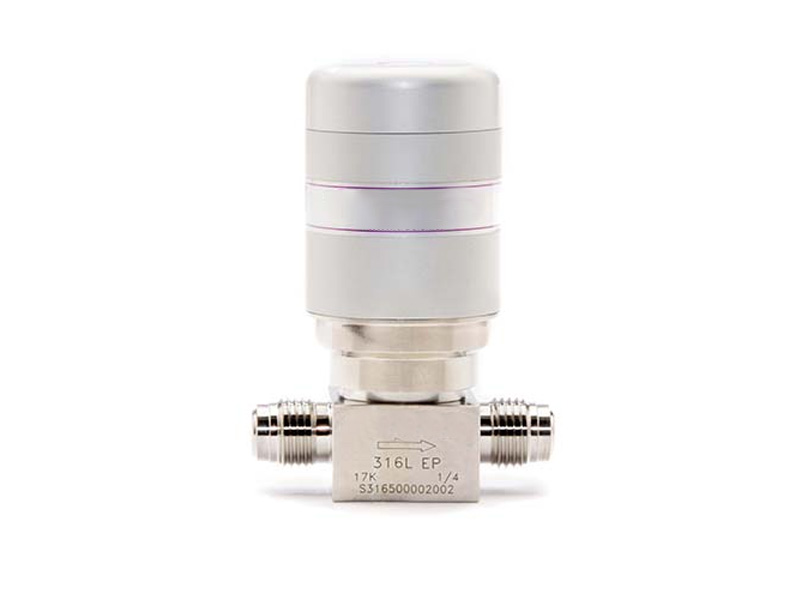

Pneumatic Actuator NC DV-S-mm-LPP-NC
| Truelok Ordering Number |
Material | Actuator | Port 1 End Connection |
Port 2 End Connection |
| DV-S-mm-LPP-NC | SS 316 L | Pneumatic Normally Closed | 1/4" Male | 1/4" Male |
Critical Features of Diaphragm Valve with male Face Seal Connections - Low Pressure Model (Normally Closed):
- Pressure Rating: 250 psig (17.2 bar)
- Temperature Rating: -10 t0 160°F (-23 to 65°C)
- Flow Coefficient: 0.27
Body:
- SS316L & SS316L VAR Body Material for Ultrahigh Purity Applications
- Fully Swept Flow Path Minimizes Entrapment Areas and Maximizes Flow Capacity
Seat:
Fully contained PCTFE seat design provides
- Outstanding Resistance to Swelling and Contamination.
- Improved Helium Leak Test Performance
- Minimal Particle Generation
- Long Cycle Life
Diaphragm:
- Excellent in Strength and Corrision Resistance
- Optimal Design for Long Cycle Life
