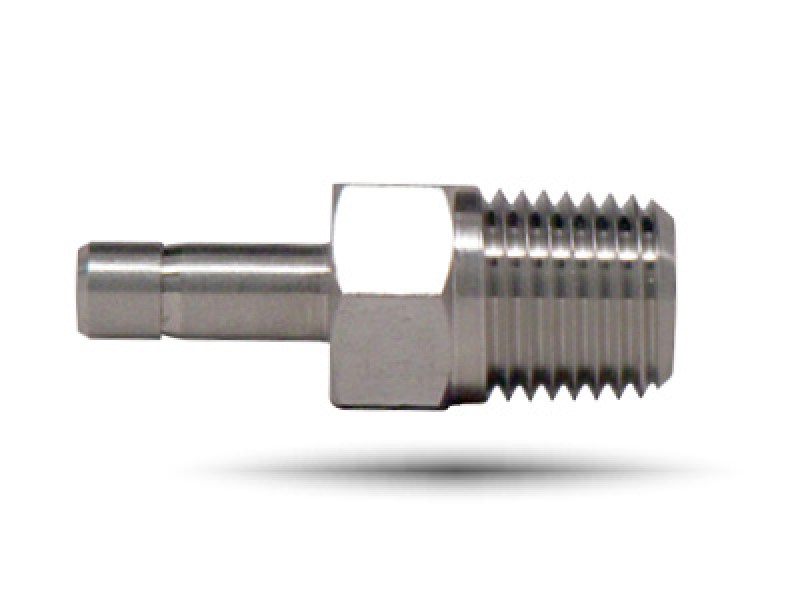

Tube Fitting Male Adapter

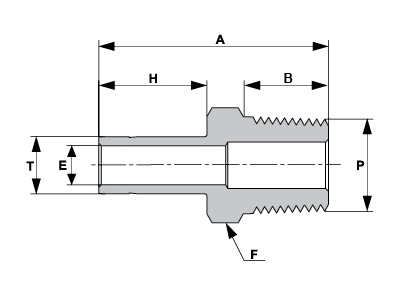

| Model | T Tube O.D. |
P NPT Male Pipe Size |
A | B | E Minimum Opening |
F Hex Flat |
H |
| inch | inch | inch | inch | inch | inch | inch | |
| MA-125-125-N | 1/8 | 1/8 | 1.16 | 0.38 | 0.08 | 7/16 | 0.53 |
| MA-125-250-N | 1/8 | 1/4 | 1.37 | 0.56 | 0.08 | 9/16 | 0.53 |
| MA-250-125-N | 1/4 | 1/8 | 1.25 | 0.38 | 0.17 | 7/16 | 0.62 |
| MA-250-250-N | 1/4 | 1/4 | 1.46 | 0.56 | 0.17 | 9/16 | 0.62 |
| MA-250-375-N | 1/4 | 3/8 | 1.49 | 0.56 | 0.17 | 11/16 | 0.62 |
| MA-250-500-N | 1/4 | 1/2 | 1.71 | 0.75 | 0.17 | 7/8 | 0.62 |
| MA-375-125-N | 3/8 | 1/8 | 1.32 | 0.38 | 0.19 | 7/16 | 0.68 |
| MA-375-250-N | 3/8 | 1/4 | 1.53 | 0.56 | 0.27 | 9/16 | 0.68 |
| MA-375-375-N | 3/8 | 3/8 | 1.56 | 0.56 | 0.27 | 11/16 | 0.68 |
| MA-375-500-N | 3/8 | 1/2 | 1.78 | 0.75 | 0.27 | 7/8 | 0.68 |
| MA-500-250-N | 1/2 | 1/4 | 1.75 | 0.56 | 0.28 | 9/16 | 0.90 |
| MA-500-375-N | 1/2 | 3/8 | 1.78 | 0.56 | 0.37 | 11/16 | 0.90 |
| MA-500-500-N | 1/2 | 1/2 | 2.00 | 0.75 | 0.37 | 7/8 | 0.90 |
| MA-750-500-N | 3/4 | 1/2 | 2.06 | - | 0.47 | 7/8 | 0.97 |
| MA-750-750-N | 3/4 | 3/4 | 2.06 | - | 0,58 | 1 1/16 | 0.97 |
| MA-1000-750-N | 1 | 3/4 | 2.31 | - | 0.62 | 1 1/16 | 1.24 |
| MA-1000-1000-N | 1 | 1 | 2.60 | - | 0.80 | 1 3/8 | 1.24 |
Material:
Standard Compression Tube Fittings Male Adopters are manufactured by using SS316 Bar Stock in accodance with ASTM A-479 and SS316 Forging in accordance with ASTM A-182. Fittings in other materials are available at customer's request.
Operating Temperature:
Compression Tube Fittings Male Adopters provide safe and reliable performance from cyrogenic temperature to high temperature upto 380 °C.
Working Pressure:
The maximum working pressure of standard Compression Tube Fittings Male Adopter when used in conjunction with annealed SS316 seamless tubing per ASTM A-213 or equivalent is shown below:
| Tube O.D. (inch) |
Wall Thickness (inch) | |||||
| 0.020 | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | |
| 1/8" | 6863 | 9967 | 12641 | |||
| 1/4" | 4600 | 5891 | 8602 | 11688 | ||
| 3/8" | 3777 | 5460 | 7571 | |||
| 1/2" | 2768 | 3976 | 5423 | 7162 | ||
