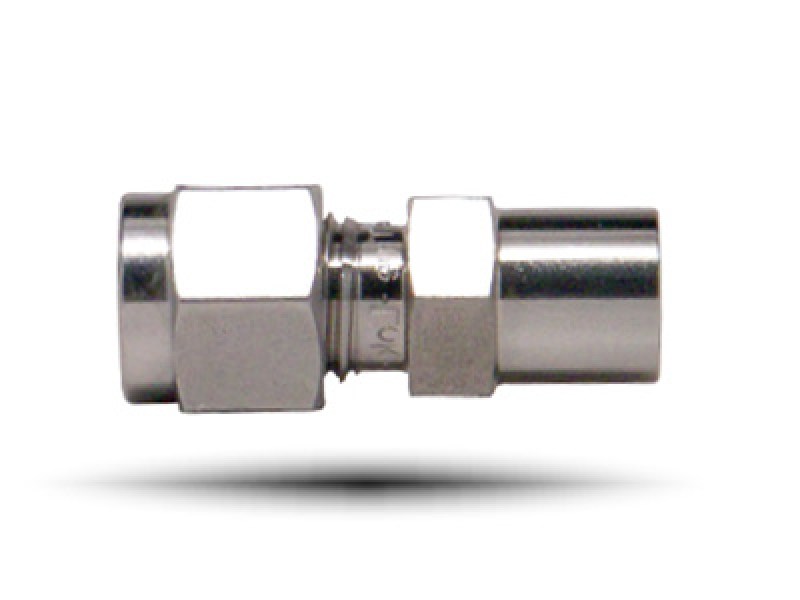

Male Pipe Weld Connector

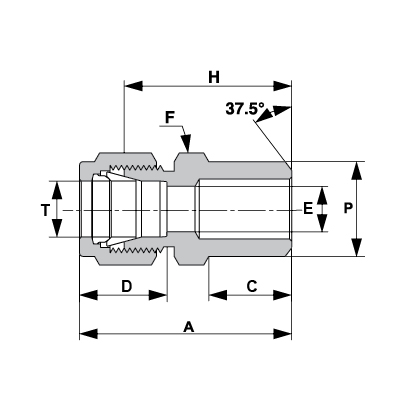

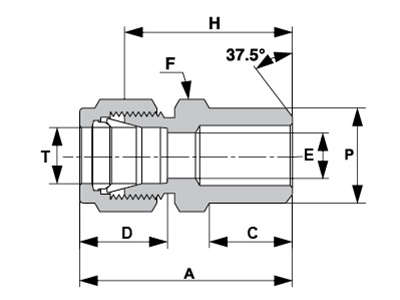

| Model | T Tube O.D. |
P Pipe Size |
A | C | D | E Minimum Opening | F Hex Flat | H |
| inch | inch | inch | inch | inch | inch | inch | inch | |
| MWC-125-125 | 1/8 | 1/8 | 1.20 | 0.38 | 0.50 | 0.09 | 7/16 | 0.94 |
| MWC-250-125 | 1/4 | 1/8 | 1.29 | 0.38 | 0.60 | 0.19 | 1/2 | 1.00 |
| MWC-250-250 | 1/4 | 1/4 | 1.49 | 0.56 | 0.60 | 0.19 | 9/16 | 1.20 |
| MWC-375-250 | 3/8 | 1/4 | 1.57 | 0.56 | 0.66 | 0.28 | 5/8 | 1.28 |
| MWC-375-375 | 3/8 | 3/8 | 1.57 | 0.56 | 0.66 | 0.28 | 11/16 | 1.28 |
| MWC-375-500 | 3/8 | 1/2 | 1.82 | 0.66 | 0.75 | 0.28 | 7/8 | 1.53 |
| MWC-500-375 | 1/2 | 3/8 | 1.71 | 0.56 | 0.90 | 0.41 | 13/16 | 1.31 |
| MWC-500-500 | 1/2 | 1/2 | 1.93 | 0.75 | 0.90 | 0.41 | 7/8 | 1.53 |
| MWC-750-750 | 3/4 | 3/4 | 1.99 | 0.75 | 0.96 | 0.62 | 1 1/16 | 1.59 |
| MWC-1000-1000 | 1 | 1 | 2.45 | 0.94 | 1.23 | 0.88 | 1 3/8 | 1.97 |
Material:
Standard Male Pipe Weld Tube Fitting Connectors are manufactured by using SS316 Bar Stock in accodance with ASTM A-479 and SS316 Forging in accordance with ASTM A-182. Fittings in other materials are available
Operating Temperature:
Compression Tube Fittings provide safe and reliable performance from cyrogenic temperature to high temperature upto 380 °C.
Working Pressure:
The maximum working pressure of standard Male Pipe Weld Compression Tube Fitting Connector when used in conjunction with annealed SS316 seamless tubing per ASTM A-213 or equivalent is shown below:
| Tube O.D. (inch) |
Wall Thickness (inch) | |||||
| 0.020 | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | |
| 1/8" | 6863 | 9967 | 12641 | |||
| 1/4" | 4600 | 5891 | 8602 | 11688 | ||
| 3/8" | 3777 | 5460 | 7571 | |||
| 1/2" | 2768 | 3976 | 5423 | 7162 | ||
