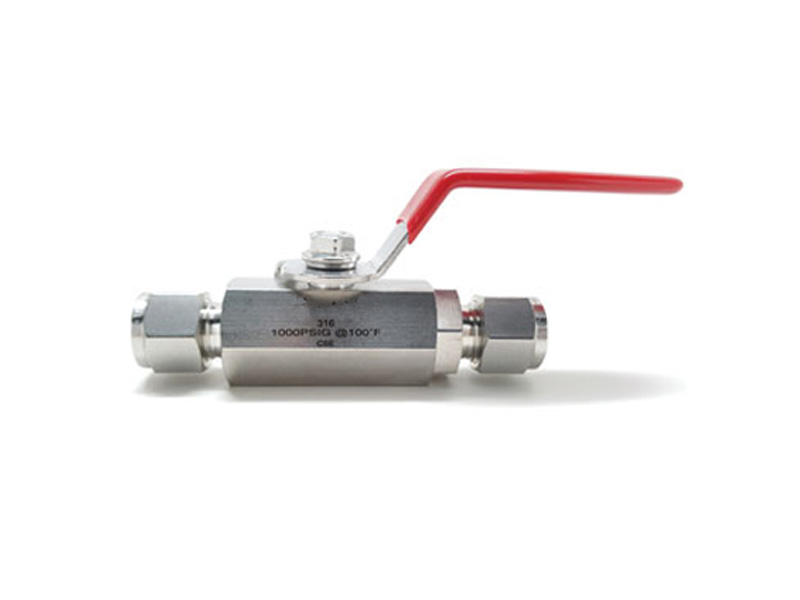

Hex Ball Valves
| Model | End Connection Inlet | Outlet |

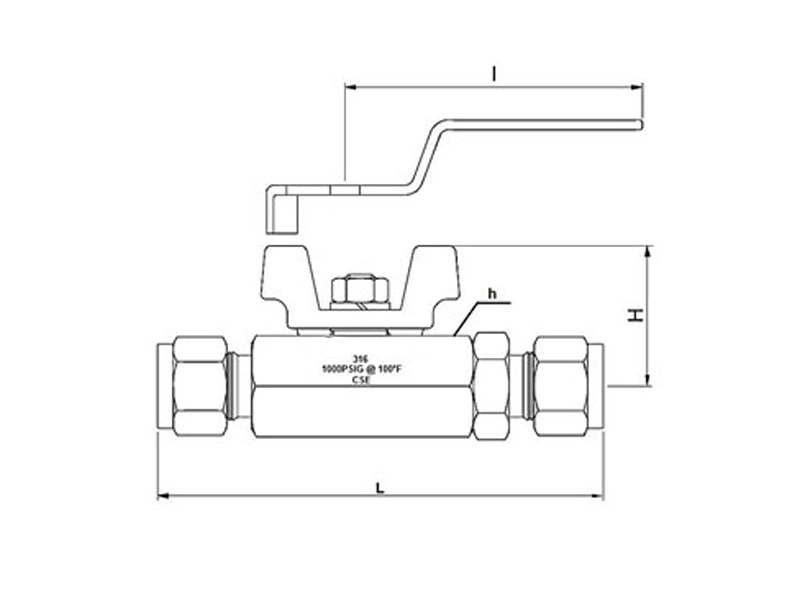

Orifice | Cv | Dimensions | |||
| L | H | h(hex) | I | ||||
| BVL-S-4TF4TF-1K | 1/4" TF x 1/4" TF | 0.20" (5 mm) |
1.25 | 3.11" (79 mm) |
1.04" (26.5 mm) |
0.69" (17.46 mm) |
2.34" (59.5 mm) |
| BVL-S-6TF6TF-1K | 3/8” TF x 3/8” TF | 0.30" (7.5 mm) |
2.5 | 3.53" (89.5 mm) |
1.30" (32.5 mm) |
0.87" (22.22 mm) |
3.19" (81.0 mm) |
| BVL-S-8TF8TF-1K | 1/2" TF x 1/2" TF | 0.35” (9 mm) |
9.25 | 4" (101.6 mm) |
1.38" (35 mm) |
1.06" (26.98 mm) |
3.19" (81.0 mm) |
| BVL-S-12TF12TF-1K | 3/4" TF x 3/4" TF | 0.49" (12.5 mm) |
10.6 | 4.23" (107.5 mm) |
1.48" (37.5 mm) |
1.25" (31.75 mm) |
4.04" (102.5 mm) |
| BVL-S-16TF16TF-1K | 1” TF x 1” TF | 0.63” (16 mm) |
17.33 | 5.22" (132.6 mm) |
1.75" (44.5 mm) |
1.50" (38.10 mm) |
4.04" (102.5 mm) |
| BVL-S-4FN4FN-1K | 1/4" FNPT | 0.20” (5 mm) |
1.35 | 3.23” (82 mm) |
1.04" (26.5 mm) |
0.69" (17.46 mm) |
2.34 (59.5 mm) |
| BVL-S-6FN6FN-1K | 3/8” FNPT | 0.30” (7.5 mm) |
2.6 | 3.52" (89.5 mm) |
1.30" (32.5 mm) |
0.87" (22.22 mm) |
3.19" (81.0 mm) |
| BVL-S-8FN8FN-1K | 1/2" FNPT | 0.35” (9 mm) |
9.25 | 4" (101.6 mm) |
1.38" (35 mm) |
1.06" (26.98 mm) |
3.19" (81.00 mm) |
| BVL-S-12FN12FN-1K | 3/4" FNPT | 0.49” (12.5 mm) |
12.7 | 4.23" (107.5 mm) |
1.48" (37.5 mm) |
1.25" (31.75 mm) |
4.04" (102.5 mm) |
| BVL-S-16FN16FN-1K | 1” FNPT | 0.63” (16 mm) |
17.35 | 5.22" (132.6 mm) |
1.75" (44.5 mm) |
1.50" (38.10 mm) |
4.04" (102.5 mm) |
Critical Specifications:
| Pressure Rating | 1000 psig (69 bar) @ 100°F (38°C) |
| Working Temperature | 0°F to 450°F (-17°C to 232°C) |
| Body Material | Stainless Steel 316 |
| Port End Connections | TF (Tube Fitting) & FNPT (Female NPT) |
| Orifice | 0.20” (5 mm) to 0.63” (16 mm) |
| Handle | Standard lever handle; optional butterfly handle |
