Product

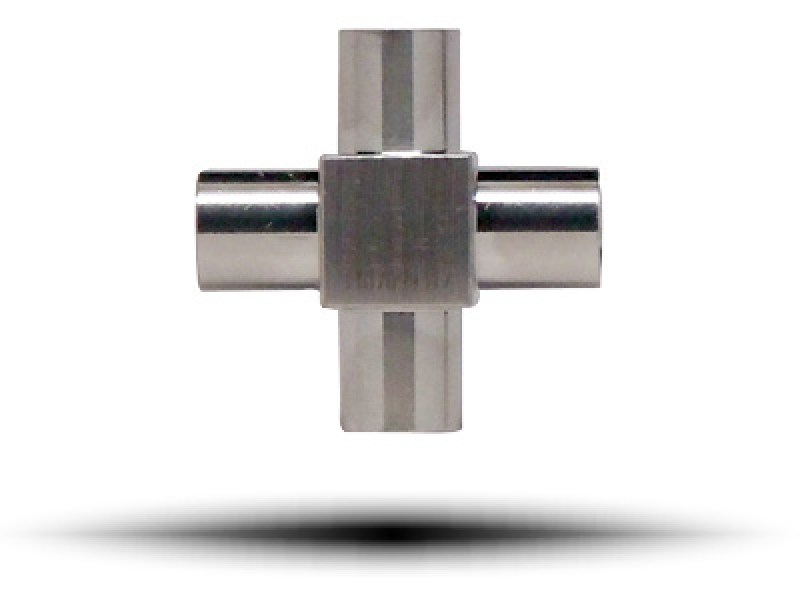

Cross

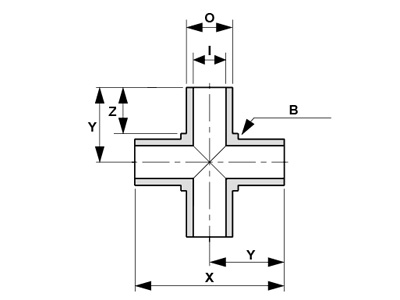

| Model | 0 Tube OD |
B Body |
I Tube ID |
X | Y | Z |
| inch | inch | inch | inch | inch | inch | |
| C-2 | 1/8 | 5/16 | 0.060 | 0.820 | 0.410 | 0.250 |
| C-4 | 1/4 | 5/16 | 0.180 | 0.820 | 0.410 | 0.250 |
| C-6 | 3/8 | 7/16 | 0.300 | 0.940 | 0.470 | 0.250 |
| C-8 | 1/2 | 9/16 | 0.400 | 1.060 | 0.530 | 0.250 |
Material:
Standard Mini Weld Cross - Micro Weld Cross Fittings are manufactured with SS316L,VAR, VIM/VAR and Hastelloy C-22 industry preferred materials for high purity fittings due to their corrision and oxidation resistant properties. Mini Weld Tee, Extended Leg Tee, Reducing Tee, Elbow, Extended Leg Elbow, Reducing Elbow and Tribow are also available
Electropolish:
Mini Weld Cross Fittings are offered in Electropolished Finish with less than 5 Ra, add E at the end of your part number for Electropolished finish.
Surface Finish:
Ra value of standard finish is between 10-15 Ra. Electropolished finish less than 5 Ra.
