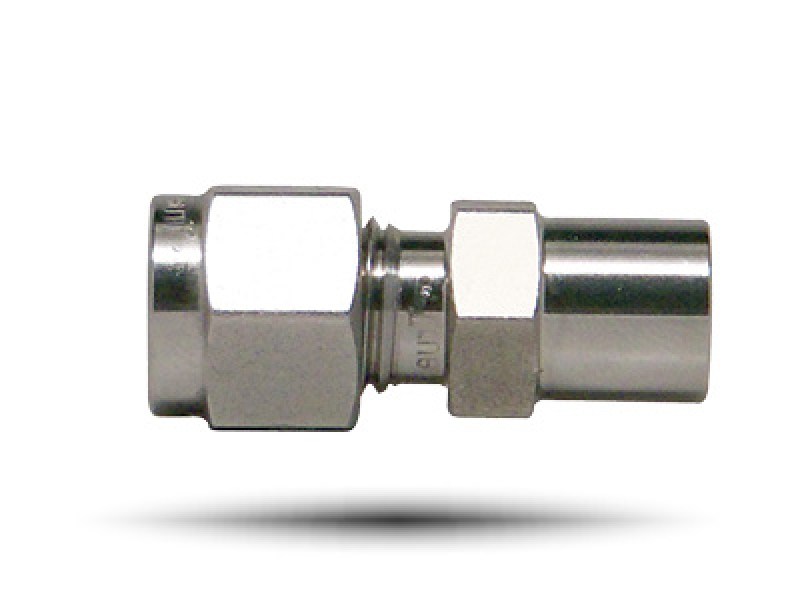

Tube Fitting Socket Weld Union
| Model | T Tube O.D. |
A | B | C | D | E Minimum Opening |
F Hex Flat |
H |
| inch | inch | inch | inch | inch | inch | inch | inch | |
| SWU-125 | 1/8 | 1.14 | 0.10 | 0.25 | 0.50 | 0.09 | 7/16 | 0.88 |
| SWU-250 | 1/4 | 1.32 | 0.41 | 0.31 | 0.60 | 0.19 | 1/2 | 1.03 |
| SWU-375 | 3/8 | 1.48 | 0.47 | 0.38 | 0.66 | 0.28 | 5/8 | 1.19 |
| SWU-500 | 1/2 | 1.62 | 0.47 | 0.50 | 0.90 | 0.41 | 13/16 | 1.22 |
| SWU-750 | 3/4 | 1.71 | 0.47 | 0.55 | 0.95 | 0.61 | 1-1/16 | 1.31 |
| SWU-1000 | 1 | 2.07 | 0.55 | 0.75 | 1.22 | 0.88 | 1-3/8 | 1.58 |
Material:
Standard Compression Tube Fittings are manufactured by using SS316 Bar Stock in accodance with ASTM A-479 and SS316 Forging in accordance with ASTM A-182. Fittings in other materials are available at customer's request.
Operating Temperature:
Compression Tube Fittings provide safe and reliable performance from cyrogenic temperature to high temperature upto 380 °C.
Working Pressure:
The maximum working pressure of standard Compression Tube Fittings when used in conjunction with annealed SS316 seamless tubing per ASTM A-213 or equivalent is shown below:
| Tube O.D. (inch) |
Wall Thickness (inch) | |||||
| 0.020 | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | |
| 1/8" | 6863 | 9967 | 12641 | |||
| 1/4" | 4600 | 5891 | 8602 | 11688 | ||
| 3/8" | 3777 | 5460 | 7571 | |||
| 1/2" | 2768 | 3976 | 5423 | 7162 | ||
