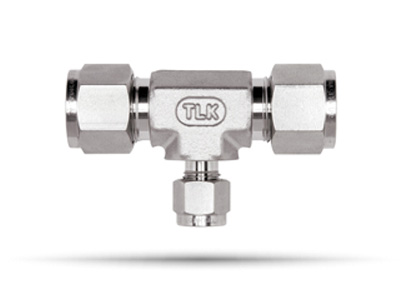

Reducing Union Tee

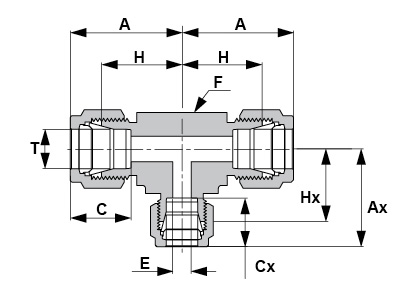

| Model | T Tube O.D. |
Tx Tube O.D. |
A | Ax | C | Cx | E Minimum Opening |
F Wrench Pad |
H | Hx |
| inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | |
| RUT-250-125 | 1/4 | 1/8 | 1.06 | 1.03 | 0.60 | 0.50 | 0.09 | 1/2 | 0.77 | 0.77 |
| RUT-375-250 | 3/8 | 1/4 | 1.20 | 1.14 | 0.66 | 0.60 | 0.19 | 5/8 | 0.91 | 0.85 |
| RUT-500-250 | 1/2 | 1/4 | 1.42 | 1.25 | 0.90 | 0.60 | 0.19 | 13/16 | 1.02 | 0.96 |
| RUT-500-375 | 1/2 | 3/8 | 1.42 | 1.31 | 0.90 | 0.66 | 0.28 | 13/16 | 1.02 | 1.02 |
| RUT-750-375 | 3/4 | 3/8 | 1.57 | 1.46 | 0.96 | 0.66 | 0.28 | 1-1/8 | 1.17 | 1.17 |
| RUT-750-500 | 3/4 | 1/2 | 1.57 | 1.57 | 0.96 | 0.90 | 0.41 | 1-1/8 | 1.17 | 1.17 |
| RUT-1000-375 | 1 | 3/8 | 1.93 | 1.65 | 1.23 | 0.66 | 0.28 | 1-3/8 | 1.45 | 1.36 |
| RUT-1000-500 | 1 | 1/2 | 1.93 | 1.76 | 1.23 | 0.90 | 0.41 | 1-3/8 | 1.45 | 1.36 |
| RUT-1000-750 | 1 | 3/4 | 1.93 | 1.76 | 1.23 | 0.96 | 0.62 | 1-3/8 | 1.45 | 1.36 |
Material:
Standard Compression Tube Fittings are manufactured by using SS316 Bar Stock in accodance with ASTM A-479 and SS316 Forging in accordance with ASTM A-182. Fittings in other materials are available at customer's request.
Operating Temperature:
Compression Tube Fittings provide safe and reliable performance from cyrogenic temperature to high temperature upto 380 °C.
Working Pressure:
The maximum working pressure of standard Compression Tube Fittings when used in conjunction with annealed SS316 seamless tubing per ASTM A-213 or equivalent is shown below:
| Tube O.D. (inch) |
Wall Thickness (inch) | |||||
| 0.020 | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | |
| 1/8" | 6863 | 9967 | 12641 | |||
| 1/4" | 4600 | 5891 | 8602 | 11688 | ||
| 3/8" | 3777 | 5460 | 7571 | |||
| 1/2" | 2768 | 3976 | 5423 | 7162 | ||
