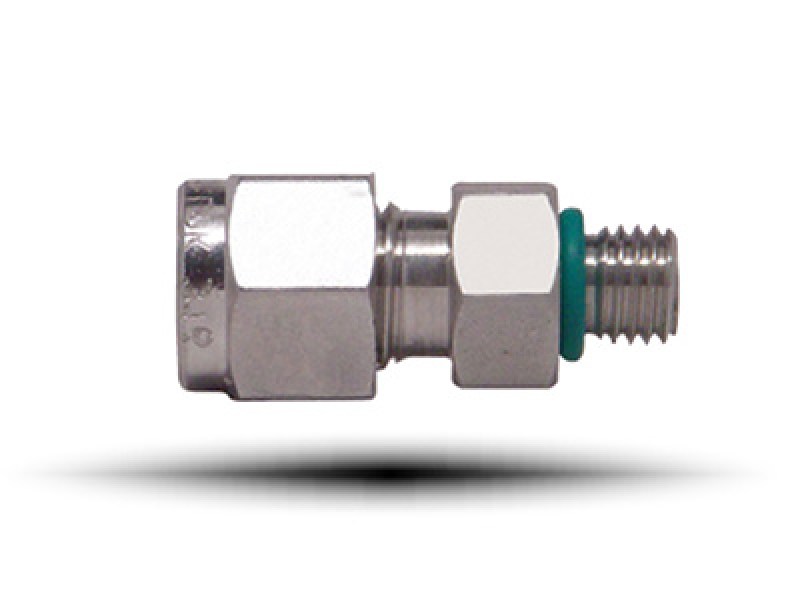

Male Connector SAE/MS Straight Thread
|

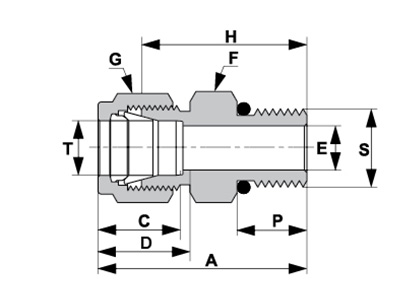

Model |
T |
S |
A |
C |
D |
E |
F |
G |
H |
P |
| inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | |
| MCST-125-312-SE | 1/8 | 5/16-24 | 1018 | 0.50 | 0.60 | 0.09 | 7/16 | 7/16 | 0.92 | 0.30 |
| MCST-250-7/16-20-SE | 1/4 | 7/16-20 | 1.34 | 0.60 | 0.70 | 0.19 | 9/16 | 9/16 | 1.05 | 0.36 |
| MCST-250-9/16-18 | 1/4 | 9/16-18 | 1.40 | 0.60 | 0.70 | 0.19 | 11/16 | 9/16 | 1.11 | 0.39 |
| MCST-250-3/4-16-SE | 1/4 | 3/4-16 | 1.48 | 0.60 | 0.70 | 0.19 | 7/8 | 9/16 | 1.19 | 0.44 |
| MCST-250-7/8-14-SE | 1/4 | 7/8-14 | 1.60 | 0.60 | 0.70 | 0.19 | 1 | 9/16 | 1.31 | 0.50 |
| MCST-375-7/16-20-SE | 3/8 | 7/16-20 | 1.40 | 0.66 | 0.76 | 0.20 | 5/8 | 11/16 | 1.11 | 0.36 |
| MCST-375-9/16-18-SE | 3/8 | 9/16-18 | 1.46 | 0.66 | 0.76 | 0.28 | 11/16 | 11/16 | 1.17 | 0.39 |
| MCST-375-3/4-16-SE | 3/8 | 3/4-16 | 1.54 | 0.66 | 0.76 | 0.28 | 7/8 | 11/16 | 1.25 | 0.44 |
| MCST-375-7/8-14-SE | 3/8 | 7/8-14 | 1.66 | 0.66 | 0.76 | 0.28 | 1 | 11/16 | 1.37 | 0.50 |
| MCST-500-9/16-18-SE | 1/2 | 9/16-18 | 1.54 | 0.90 | 0.86 | 0.28 | 13/16 | 7/8 | 1.14 | 0.39 |
| MCST-500-3/4-16-SE | 1/2 | 3/4-16 | 1.65 | 0.90 | 0.86 | 0.41 | 7/8 | 7/8 | 1.25 | 0.44 |
| MCST-500-7/8-14-SE | 1/2 | 7/8-14 | 1.77 | 0.90 | 0.86 | 0.41 | 1 | 7/8 | 1.37 | 0.50 |
| MCST-500-17/16-12-SE | 1/2 | 11/16-12 | 1.93 | 0.90 | 0.86 | 0.41 | 11/14 | 7/8 | 1.53 | 0.59 |
Material:
Standard Tube Fitting Male Connectors with SAE/MS straight threads are manufactured by using SS316 Bar Stock in accodance with ASTM A-479 and SS316 Forging in accordance with ASTM A-182. Fittings in other materials are available at customer's request.
Operating Temperature:
Compression Tube Fitting Male Connector with SAE/MS straight thread provides safe and reliable performance from cyrogenic temperature to high temperature upto 380oC.
Working Pressure:
The maximum working pressure of standard Compression Tube Fittings Connector with SAE and MS threads when used in conjunction with annealed SS316 seamless tubing per ASTM A-213 or equivalent is shown below:
|
Tube O.D. |
Wall Thickness (inch) | |||||
| 0.020 | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | |
| 1/8" | 6863 | 9967 | 12641 | ? | ? | ? |
| 1/4" | ? | 4600 | 5891 | 8602 | 11688 | ? |
| 3/8" | ? | ? | 3777 | 5460 | 7571 | ? |
| 1/2" | ? | ? | 2768 | 3976 | 5423 | 7162 |
