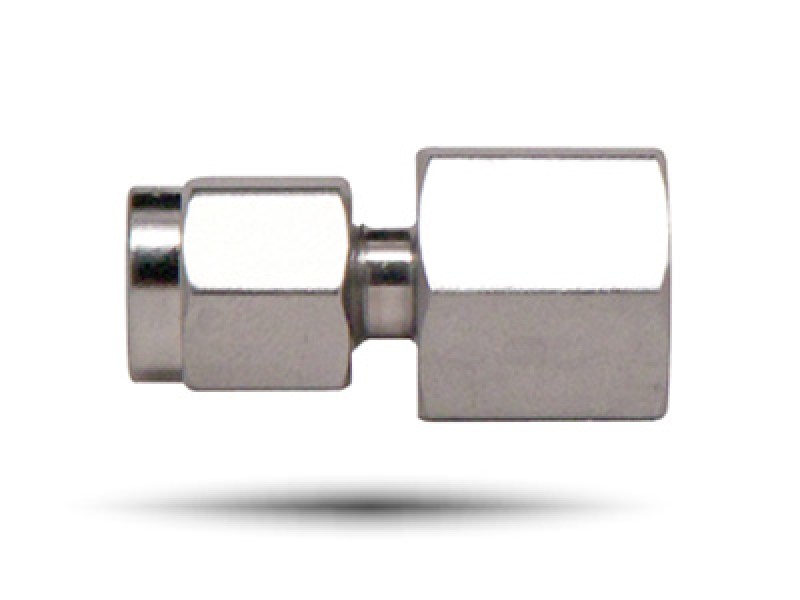

Female Tube Fitting Connector

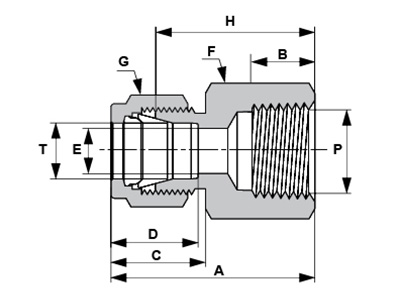

| Model | T Tube O.D. |
P NPT Female Pipe Size |
A | B | C | D | E Minimum Opening |
F Hex Flat |
G Hex Flat |
H |
| inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | |
| FC-062-062-N | 1/16 | 1/16 | 0.93 | - | - | 0.34 | 0.05 | 7/16 | 5/16 | 0.78 |
| FC-062-125-N | 1/16 | 1/8 | 0.96 | - | - | 0.34 | 0.05 | 9/16 | 5/16 | 0.81 |
| FC-125-125-N | 1/8 | 1/8 | 1.13 | 0.41 | 0.60 | 0.50 | 0.09 | 9/16 | 7/16 | 0.87 |
| FC-125-250-N | 1/8 | 1/4 | 1.32 | 0.59 | 0.60 | 0.50 | 0.09 | 3/4 | 7/16 | 1.06 |
| FC-250-125-N | 1/4 | 1/8 | 1.23 | 0.39 | 0.70 | 0.60 | 0.19 | 9/16 | 9/16 | 0.94 |
| FC-250-250-N | 1/4 | 1/4 | 1.41 | 0.59 | 0.70 | 0.60 | 0.19 | 3/4 | 9/16 | 1.12 |
| FC-250-375-N | 1/4 | 3/8 | 1.48 | 0.59 | 0.70 | 0.60 | 0.19 | 7/8 | 9/16 | 1.19 |
| FC-250-500-N | 1/4 | 1/2 | 1.67 | 0.78 | 0.70 | 0.60 | 0.19 | 1-1/16 | 9/16 | 1.38 |
| FC-375-125-N | 3/8 | 1/8 | 1.29 | 0.39 | 0.76 | 0.66 | 0.28 | 5/8 | 11/16 | 1.00 |
| FC-375-250-N | 3/8 | 1/4 | 1.48 | 0.59 | 0.76 | 0.66 | 0.28 | 3/4 | 11/16 | 1.19 |
| FC-375-375-N | 3/8 | 3/8 | 1.54 | 0.59 | 0.76 | 0.66 | 0.28 | 7/8 | 11/16 | 1.25 |
| FC-375-500-N | 3/8 | 1/2 | 1.73 | 0.78 | 0.76 | 0.66 | 0.28 | 1-1/16 | 11/16 | 1.44 |
| FC-500-250-N | 1/2 | 1/4 | 1.59 | 0.59 | 0.86 | 0.90 | 0.41 | 13/16 | 7/8 | 1.19 |
| FC-500-375-N | 1/2 | 3/8 | 1.65 | 0.59 | 0.86 | 0.90 | 0.41 | 7/8 | 7/8 | 1.25 |
| FC-500-500-N | 1/2 | 1/2 | 1.84 | 0.78 | 0.86 | 0.90 | 0.41 | 1-1/16 | 7/8 | 1.44 |
| FC-500-750-N | 1/2 | 3/4 | 1.90 | - | 0.86 | 0.90 | 0.41 | 1-5/16 | 7/8 | 1.5 |
| FC-750-500-N | 3/4 | 1/2 | 1.84 | - | 0.86 | 0.95 | 0.61 | 1-1/16 | 1-1/8 | 1.44 |
| FC-750-750-N | 3/4 | 3/4 | 1.90 | - | 0.86 | 0.95 | 0.61 | 1-5/16 | 1-1/8 | 1.5 |
| FC-1000-750-N | 1 | 3/4 | 2.10 | - | 1.03 | 1.22 | 0.87 | 1-3/8 | 1-1/2 | 1.61 |
| FC-1000-1000-N | 1 | 1 | 2.45 | - | 1.03 | 1.22 | 0.87 | 1-5/8 | 1-1/2 | 1.96 |
Material:
Standard Female Compression Tube Fitting Connectors are manufactured by using SS316 Bar Stock in accodance with ASTM A-479 and SS316 Forging in accordance with ASTM A-182. Fittings in other materials are available at customer's request.
Operating Temperature:
Compression Tube Fittings provide safe and reliable performance from cyrogenic temperature to high temperature upto 380 °C.
Working Pressure:
The maximum working pressure of standard Female Compression Tube Fitting Connector when used in conjunction with annealed SS316 seamless tubing per ASTM A-213 or equivalent is shown below:
| Tube O.D. (inch) |
Wall Thickness (inch) | |||||
| 0.020 | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | |
| 1/8" | 6863 | 9967 | 12641 | |||
| 1/4" | 4600 | 5891 | 8602 | 11688 | ||
| 3/8" | 3777 | 5460 | 7571 | |||
| 1/2" | 2768 | 3976 | 5423 | 7162 | ||
