Female Tube Fitting Connector

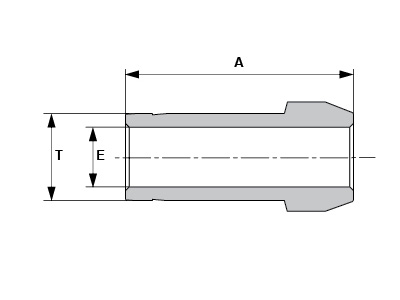

| Model | T Tube O.D. | A | E Minimum Opening |
| inch | inch | inch | |
| PC-062 | 1/16 | 0.54 | 0.03 |
| PC-125 | 1/8 | 0.88 | 0.09 |
| PC-250 | 1/4 | 0.98 | 0.17 |
| PC-375 | 3/8 | 1.03 | 0.27 |
| PC-500 | 1/2 | 1.43 | 0.37 |
| PC-750 | 3/4 | 1.49 | 0.58 |
| PC-1000 | 1 | 1.94 | 0.80 |
Material:
Standard Compression Tube Fittings are manufactured by using SS316 Bar Stock in accodance with ASTM A-479 and SS316 Forging in accordance with ASTM A-182. Fittings in other materials are available at customer's request.
Operating Temperature:
Compression Tube Fittings provide safe and reliable performance from cyrogenic temperature to high temperature upto 380 °C.
Working Pressure:
The maximum working pressure of standard Compression Tube Fittings when used in conjunction with annealed SS316 seamless tubing per ASTM A-213 or equivalent is shown below:
| Tube O.D. (inch) |
Wall Thickness (inch) | |||||
| 0.020 | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | |
| 1/8" | 6863 | 9967 | 12641 | |||
| 1/4" | 4600 | 5891 | 8602 | 11688 | ||
| 3/8" | 3777 | 5460 | 7571 | |||
| 1/2" | 2768 | 3976 | 5423 | 7162 | ||
