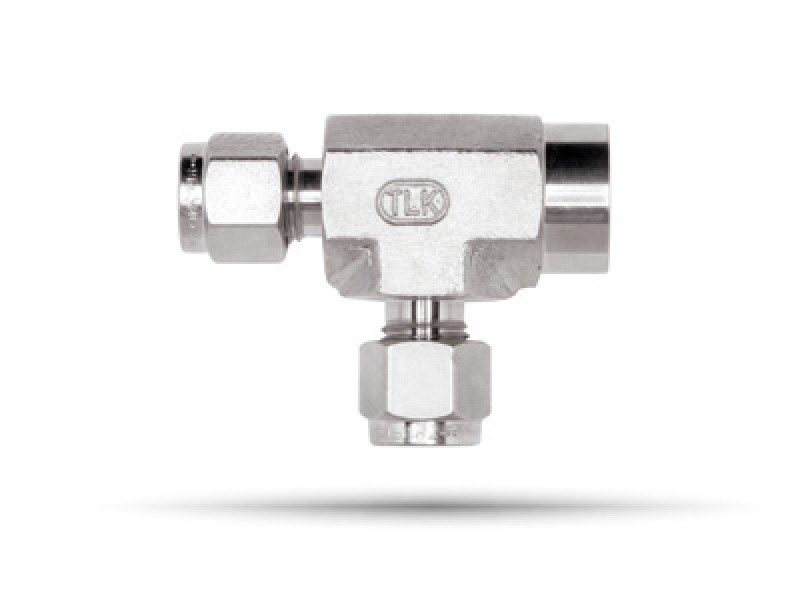

Female Run Tee

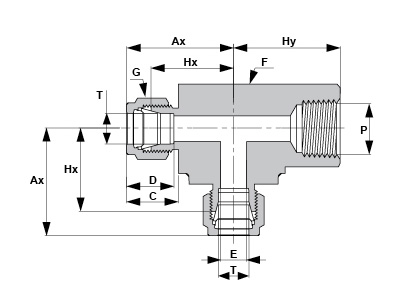

| Model | T Tube O.D. |
P NPT Female Pipe Size |
Ax | C | D | E Minimum Opening |
F Wrench Pad |
G Hex Flat |
Hx | Hy |
| inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | |
| FRT-125-125-N | 1/8 | 1/8 | 0.97 | 0.60 | 0.50 | 0.09 | 5/8 | 7/16 | 0.71 | 0.75 |
| FRT-250-125-N | 1/4 | 1/8 | 1.06 | 0.70 | 0.60 | 0.19 | 5/8 | 9/16 | 0.77 | 0.75 |
| FRT-250-250-N | 1/4 | 1/4 | 1.17 | 0.70 | 0.60 | 0.19 | 13/16 | 9/16 | 0.88 | 0.88 |
| FRT-375-250-N | 3/8 | 1/4 | 1.23 | 0.76 | 0.66 | 0.28 | 13/16 | 11/16 | 0.94 | 0.88 |
| FRT-500-375-N | 1/2 | 3/8 | 1.42 | 0.86 | 0.90 | 0.41 | 15/16 | 7/8 | 1.02 | 0.88 |
| FRT-500-500-N | 1/2 | 1/2 | 1.57 | 0.86 | 0.90 | 0.41 | 1 | 7/8 | 1.17 | 1.12 |
| FRT-750-500-N | 3/4 | 1/2 | 1.57 | 0.86 | 0.96 | 0.62 | 1-1/16 | 1-1/8 | 1.17 | 1.12 |
| FRT-750-750-N | 3/4 | 3/4 | 1.76 | 0.86 | 0.96 | 0.62 | 1-1/4 | 1-1/8 | 1.36 | 1.25 |
| FRT-1000-750-N | 1 | 3/4 | 1.93 | 1.04 | 1.5 | 0.88 | 1-27/64 | 1-1/2 | 1.45 | 1.25 |
| FRT-1000-1000-N | 1 | 1 | 1.98 | 1.04 | 1.5 | 0.88 | 1-1/16 | 1-1/2 | 1.63 | 1.5 |
Material:
Standard Compression Tube Fittings are manufactured by using SS316 Bar Stock in accodance with ASTM A-479 and SS316 Forging in accordance with ASTM A-182. Fittings in other materials are available at customer's request.
Operating Temperature:
Compression Tube Fittings provide safe and reliable performance from cyrogenic temperature to high temperature upto 380 °C.
Working Pressure:
The maximum working pressure of standard Compression Tube Fittings when used in conjunction with annealed SS316 seamless tubing per ASTM A-213 or equivalent is shown below:
| Tube O.D. (inch) |
Wall Thickness (inch) | |||||
| 0.020 | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | |
| 1/8" | 6863 | 9967 | 12641 | |||
| 1/4" | 4600 | 5891 | 8602 | 11688 | ||
| 3/8" | 3777 | 5460 | 7571 | |||
| 1/2" | 2768 | 3976 | 5423 | 7162 | ||
