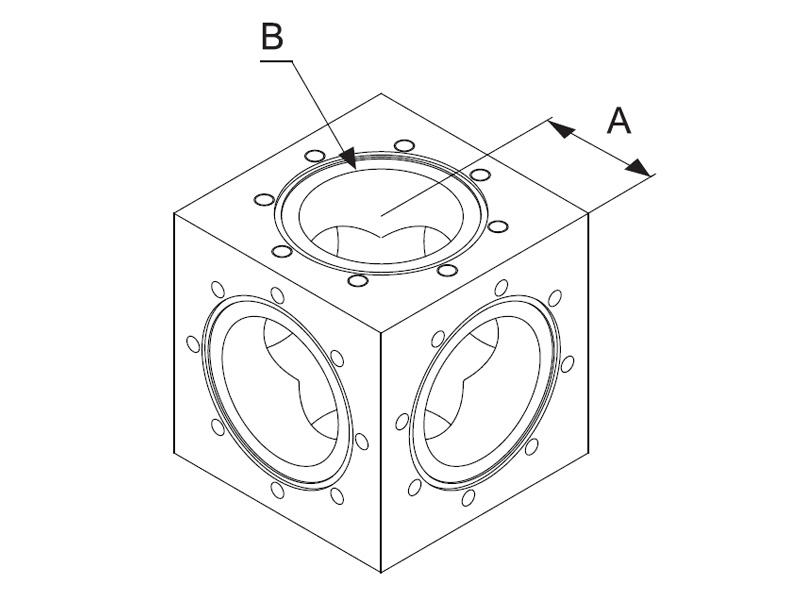

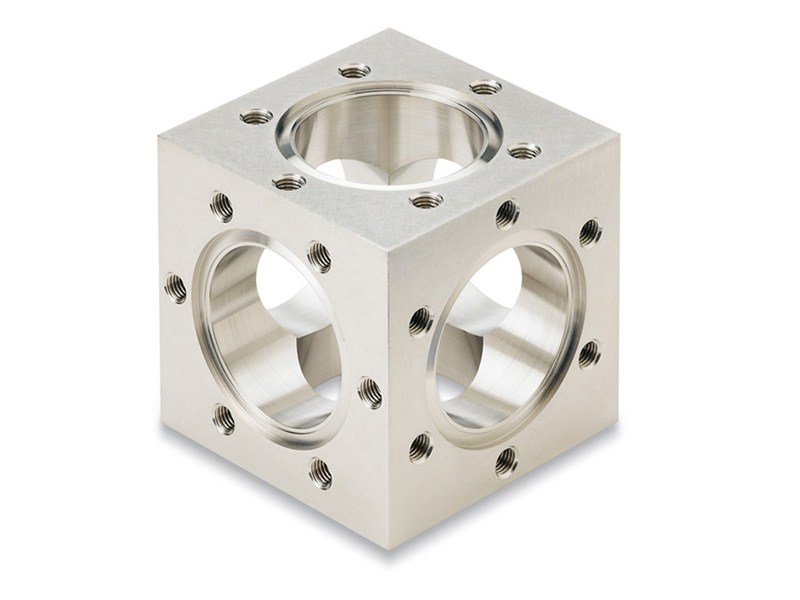

CF CUBES with Fractional Thread
| Model No. | Flange Size | Material | A | B | Thread Size | Thread Depth | Parts No. |
| CF16CUF | CF16 | 304 S.S. | 17.25 | 15.7 | 8-32 | 6.35 | 16809029024 |
| CF35CUF | CF35 | 304 S.S. | 35.05 | 38.1 | .250-28 | 9.4 | 16809049044 |
| CF50CUF | CF50 | 304 S.S. | 43 | 50.8 | .312-24 | 9.4 | 16809049064 |
| CF63CUF | CF63 | 304 S.S. | 56.65 | 63.5 | .312-24 | 12.7 | 16809079074 |
| CF100CUF | CF100 | 304 S.S. | 76.2 | 102 | .312-24 | 12.7 | 16809099094 |
| CF150CUF | CF150 | 304 S.S. | 101.6 | 152.4 | .312-24 | 12.7 | 16809119114 |
| CF200CUF | CF200 | 304 S.S. | 127 | 203.2 | .312-24 | 12.7 | 16809139134 |
