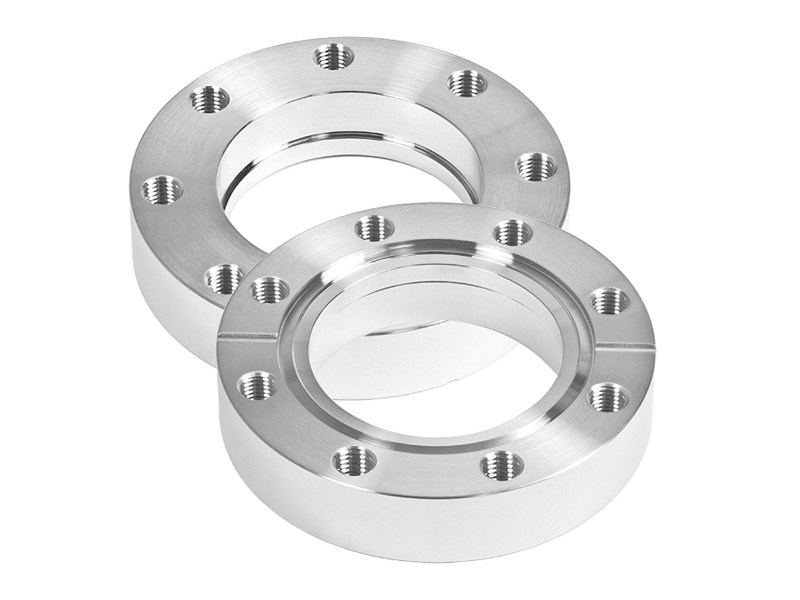

CF Bored Flange Nonrotatable Tapped Bolt-holes

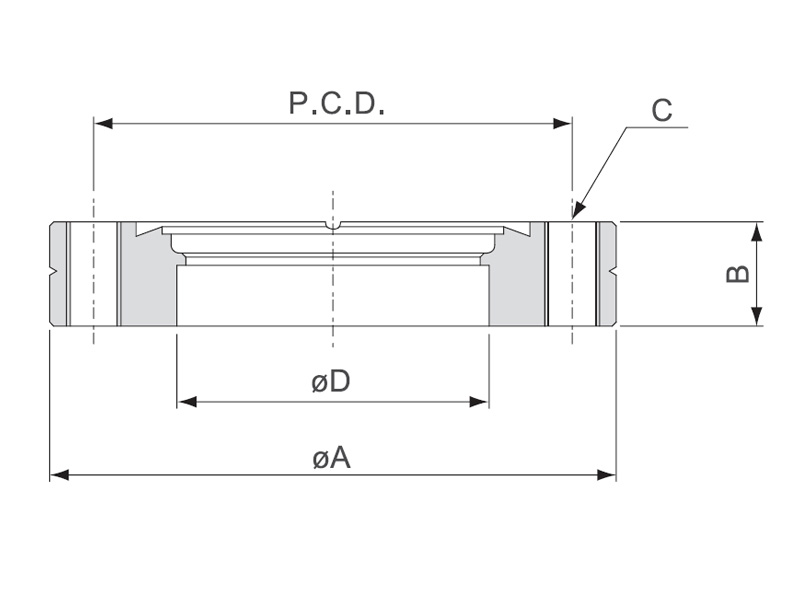

| Model No. | Material | A | B | C | D | P.C.D | Parts No. |
| CF35B25TAP | 304 S.S. | 69.5 | 12.7 | M6*6 | 25.6 | 58.7 | 154604113 |
| CF35B38TAP | 304 S.S. | 69.5 | 12.7 | M6*6 | 38.3 | 58.7 | 154604133 |
| CF35B42TAP | 304 S.S. | 69.5 | 12.7 | M6*6 | 42.9 | 58.7 | 154604AG3 |
| CF63B51TAP | 304 S.S. | 113.6 | 18 | M8*8 | 51.1 | 92.1 | 154607143 |
| CF63B63TAP | 304 S.S. | 113.6 | 18 | M8*8 | 63.7 | 92.1 | 154607153 |
| CF100B102TAP | 304 S.S. | 151.6 | 20 | M8*16 | 101.8 | 130.3 | 154609183 |
| CF150B153TAP | 304 S.S. | 202.5 | 22 | M8*20 | 153.1 | 181 | 154611203 |
| CF200B204TAP | 304 S.S. | 253.2 | 24.7 | M8*24 | 203.7 | 231.8 | 154613213 |
| CF250B255TAP | 304 S.S. | 304 | 28.5 | M8*32 | 255 | 284 | 1546X1223 |
| CF275B255TAP | 304 S.S. | 336.5 | 28.5 | M10*30 | 255 | 306.5 | 154614223 |
| CF300B305TAP | 304 S.S. | 355.6 | 28.5 | M10*30 | 305.4 | 325.7 | 154615223 |
| CF350B356TAP | 304 S.S. | 419.1 | 28.5 | M10*36 | 356.1 | 388.9 | 154617243 |
| Model No. | Material | A | B | C | D | P.C.D | Parts No. |
| CF35B25TAP-316 | 316 S.S. | 69.5 | 12.7 | M6*6 | 25.6 | 58.7 | 154604115 |
| CF35B38TAP-316 | 316 S.S. | 69.5 | 12.7 | M6*6 | 38.3 | 58.7 | 154604135 |
| CF35B42TAP-316 | 316 S.S. | 69.5 | 12.7 | M6*6 | 42.9 | 58.7 | 154604AG5 |
| CF63B51TAP-316 | 316 S.S. | 113.6 | 18 | M8*8 | 51.1 | 92.1 | 154607145 |
| CF63B63TAP-316 | 316 S.S. | 113.6 | 18 | M8*8 | 63.7 | 92.1 | 154607155 |
| CF100B102TAP-316 | 316 S.S. | 151.6 | 20 | M8*16 | 101.8 | 130.3 | 154609185 |
| CF150B153TAP-316 | 316 S.S. | 202.5 | 22 | M8*20 | 153.1 | 181 | 154611205 |
| CF200B204TAP-316 | 316 S.S. | 253.2 | 24.7 | M8*24 | 203.7 | 231.8 | 154613215 |
| CF250B255TAP-316 | 316 S.S. | 304 | 28.5 | M8*32 | 255 | 284 | 1546X1225 |
| CF275B255TAP-316 | 316 S.S. | 336.5 | 28.5 | M10*30 | 255 | 306.5 | 154614225 |
| CF300B305TAP-316 | 316 S.S. | 355.6 | 28.5 | M10*30 | 305.4 | 325.7 | 154615225 |
| CF350B356TAP-316 | 316 S.S. | 419.1 | 28.5 | M10*36 | 356.1 | 388.9 | 154617245 |
