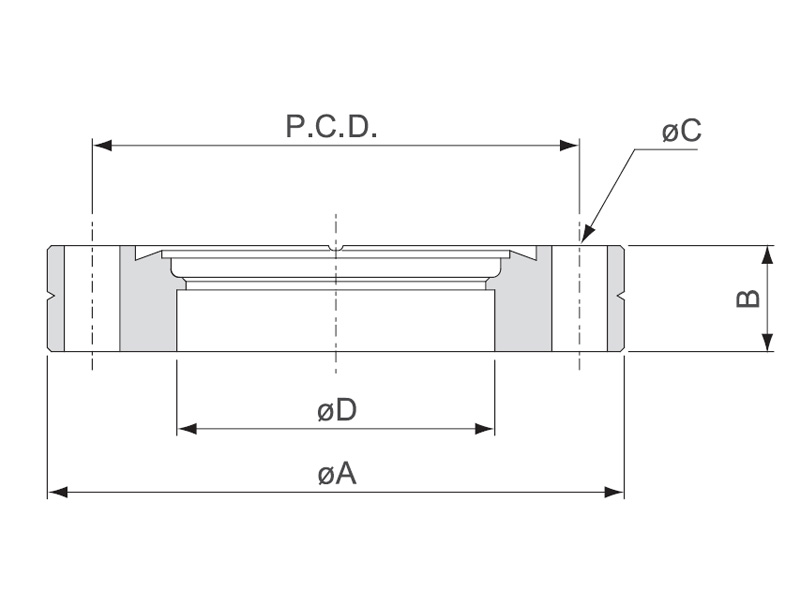

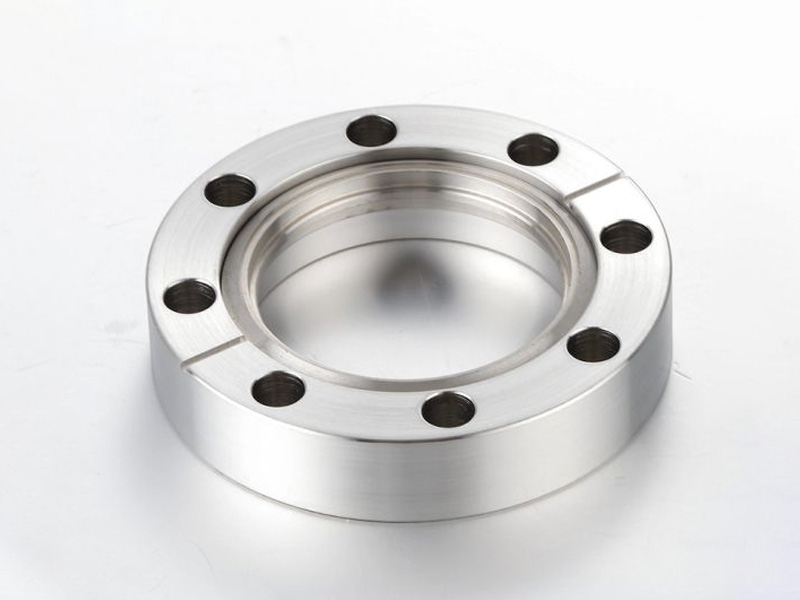

CF Bored Flange Nonrotatable
| Model No. | Material | A | B | C | D | P.C.D | Parts No. |
| CF35B25 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 25.6 | 58.7 | 154504113 |
| CF35B38 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 38.3 | 58.7 | 154504133 |
| CF35B42 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 42.9 | 58.7 | 154504AG3 |
| CF63B51 | 304 S.S. | 113.6 | 18 | 8.4*8 | 51.1 | 92.1 | 154507143 |
| CF63B63 | 304 S.S. | 113.6 | 18 | 8.4*8 | 63.7 | 92.1 | 154507153 |
| CF100B102 | 304 S.S. | 151.6 | 20 | 8.4*16 | 101.8 | 130.3 | 154509183 |
| CF150B153 | 304 S.S. | 202.5 | 22 | 8.4*20 | 153.1 | 181 | 154511203 |
| CF200B204 | 304 S.S. | 253.2 | 24.7 | 8.4*24 | 203.7 | 231.8 | 154513213 |
| CF250B255 | 304 S.S. | 304 | 28.5 | 8.4*32 | 255 | 284 | 1545X1223 |
| CF275B255 | 304 S.S. | 336.5 | 28.5 | 10.3*30 | 255 | 306.5 | 154514223 |
| CF300B305 | 304 S.S. | 355.6 | 28.5 | 10.3*30 | 305.4 | 325.7 | 154515223 |
| CF350B356 | 304 S.S. | 419.1 | 28.5 | 10.3*36 | 356.1 | 388.9 | 154517243 |
