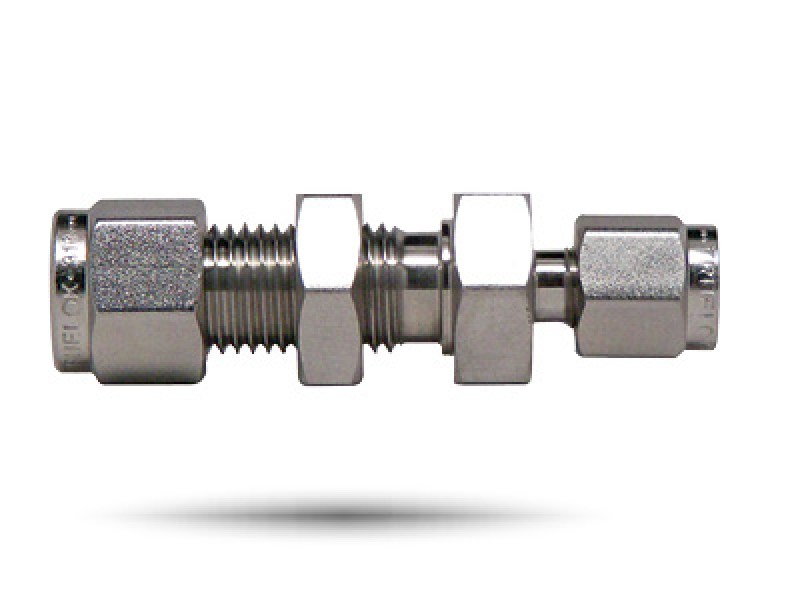

Bulkhead Reducing Union
|
Model |
T |
Tx |

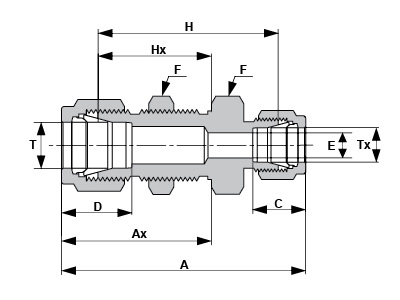

A | Ax | C | D |
E |
F |
H | Hx |
| inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | |
| RBU-250-125 | 1/4 | 1/8 | 2.17 | 1.32 | 0.50 | 0.60 | 0.19 | 5/8 | 1.74 | 1.03 |
| RBU-375-250 | 3/8 | 1/4 | 2.39 | 1.45 | 0.60 | 0.66 | 0.19 | 3/4 | 1.81 | 1.16 |
| RBU-500-250 | 1/2 | 1/4 | 2.63 | 1.65 | 0.60 | 0.90 | 0.19 | 15/16 | 1.94 |
1.25 |
| RBU-500-375 | 1/2 | 3/8 | 2.71 | 1.66 | 0.60 | 0.90 | 0.19 | 15/16 | 2.00 |
1.25 |
Material:
Standard Compression Tube Fittings Bulkhead Reducing Unions are manufactured by using SS316 Bar Stock in accodance with ASTM A-479 and SS316 Forging in accordance with ASTM A-182. Fittings in other materials are available at customer's request.
Operating Temperature:
Compression Tube Fittings Bulkhead Reducing Unions provide safe and reliable performance from cyrogenic temperature to high temperature upto 380 °C.
Working Pressure:
The maximum working pressure of standard Compression Tube Fittings Reducing Union when used in conjunction with annealed SS316 seamless tubing per ASTM A-213 or equivalent is shown below:
|
Tube O.D. |
Wall Thickness (inch) | |||||
| 0.020 | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | |
| 1/8" | 6863 | 9967 | 12641 | |||
| 1/4" | 4600 | 5891 | 8602 | 11688 | ||
| 3/8" | 3777 | 5460 | 7571 | |||
| 1/2" | 2768 | 3976 | 5423 | 7162 | ||
