Al2O3-Sapphire Wafer, M-plane, 1"Dia x 0.5 mm, 1SP & 2SP

Specifications:

• Orientation:  M +/-0.5 ^o
• Wafer size:  2" dia x 0.4 - 0.5 mm thickness
• Polished surface: One side polished & Two sides EPI polished via a special CMP procedure.  Ra <5A

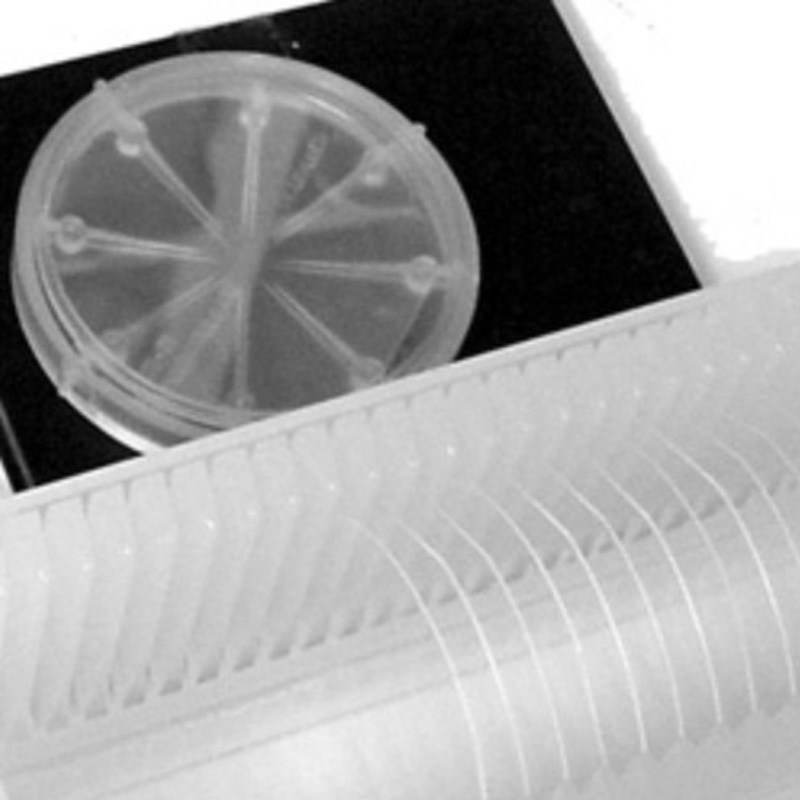

• Package: Each wafer is packed in 1000 class clean room with 100 grade plastic bag with wafer container

Typical Properties:

• Crystal Structure: Hexagonal. a=4.758 Angstroms c=12.99 Angstroms
• Melting Point: 2040 degree C
• Density: 3.97 gram/cm²
• Growth Technique: CZ
• Crystal Purity:  >99.99%
• Hardness: 9 ( mohs)
• Thermal Expansion: 7.5x10^{-6 (}/ ^oC)
• Thermal Conductivity: 46.06 @ 0 ^oC, 25.12 @ 100 ^oC, 12.56 @ 400 ^oC ( W/(m.K) )
• Dielectric Constant: ~ 9.4 @300K  at A axis ~ 11.58@ 300K at C axis
• Loss Tangent at 10 GHz: < 2x10^-5  at A axis,  -5  at C axis
