Product
SBN

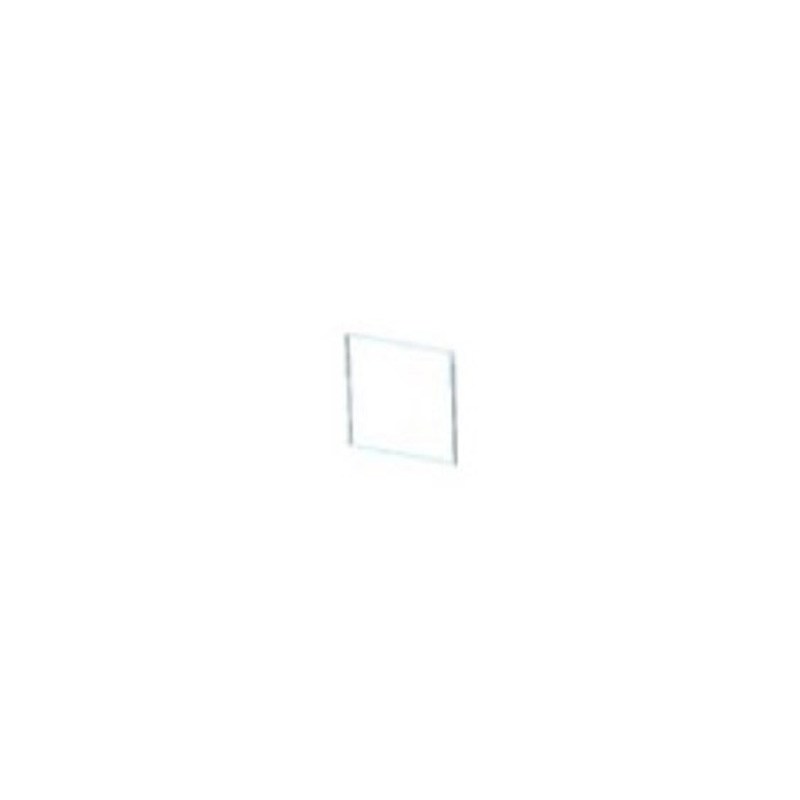

Al2O3 - Sapphire Wafer, A plane (11-20), 1 SP

Size

Features:

  • Sapphire substrate is the popular substrates for III-V nitrides, superconductor and magnetic epi film due to less mis-matched lattice and stable chemical and physical properties
  • Orientation tolerance:  +/-0.5 Deg.  A plane orientation
  • Polished surface: One side EPI polished via a special CMP procedure with Ra < 5 A
  • Package: Each wafer is packed in 1000 class clean room with 100 grade plastic bag with wafer container

Typical Properties:

  • Crystal Structure: Hexagonal. a=4.758 Angstroms c=12.99 Angstroms
  • Melting Point: 2040 degree C
  • Density: 3.97 gram/cm2
  • Growth Technique: CZ
  • Crystal purity:  >99.99%
  • Hardness: 9 (mohs)
  • Thermal Expansion: 7.5x10-6 (/oC)
  • Thermal Conductivity: 46.06 @ 0 oC, 25.12 @ 100 oC, 12.56 @ 400 oC ( W/(m.K) )
  • Dielectric Constant: ~ 9.4 @ 300K  at A axis, ~ 11.58 @ 300K at C axis
  • Loss Tangent at 10 GHz: < 2x10-5  at A axis , < 5 x10-5  at C axis
