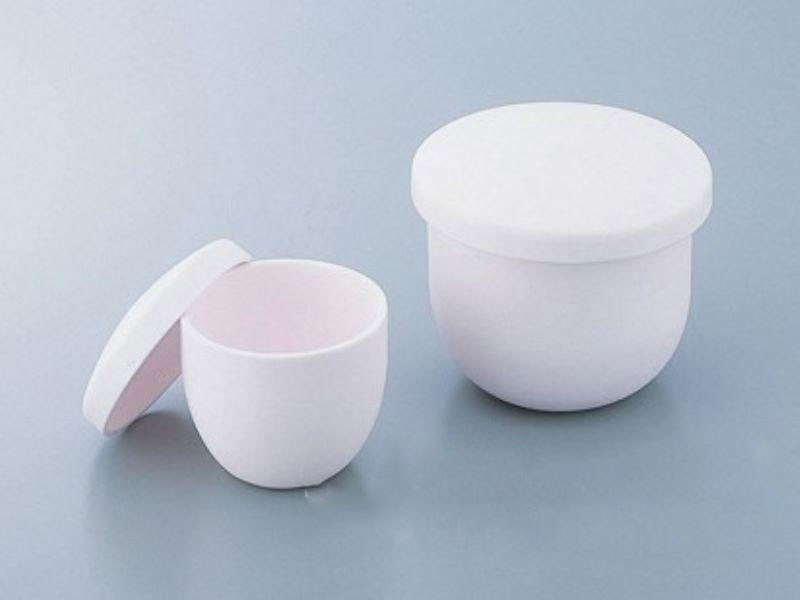

Al2O3 Crucible (Arc-Shaped)
Available in Stock
Product SKU: J03
High purity alumina crucibles, suitable for high temperature operations up to 1800 oC
*Ex-stock subject to prior sales.
| Product: | Alumina / aluminium oxide (Al2O3) crucibles | ||||
| Material: | Al2O3 (> 99%) | ||||
| Dimensions: | Volume | Top Dia / mm | Bottom Dia / mm | Height / mm | Caps |
| 5 mL | 26 | 18 | 21 | ||
| 10 mL | 30 | 20 | 28 | ||
| 20 mL | 38 | 24 | 35 | ||
| 30 mL | 45 | 27 | 39 | with caps | |
| 40 mL | 47 | 28 | 43 | with caps | |
| 50 mL | 50 | 30 | 48 | with caps | |
| 100 mL | 61 | 31 | 60 | with caps | |
| 200 mL | 82 | 43 | 70 | ||
| 300 mL | 88 | 53 | 85 | ||
| 500 mL | 108 | 62 | 108 | ||
| 800 mL | 113 | 62 | 140 | ||
| 1000 mL | 122 | 95 | 165 | ||
| Temperature range: | Up to 1800 oC , can work in | ||||
| Comments: | Quenching resistant, excellent insulating behaviour, long-lasting. | ||||
